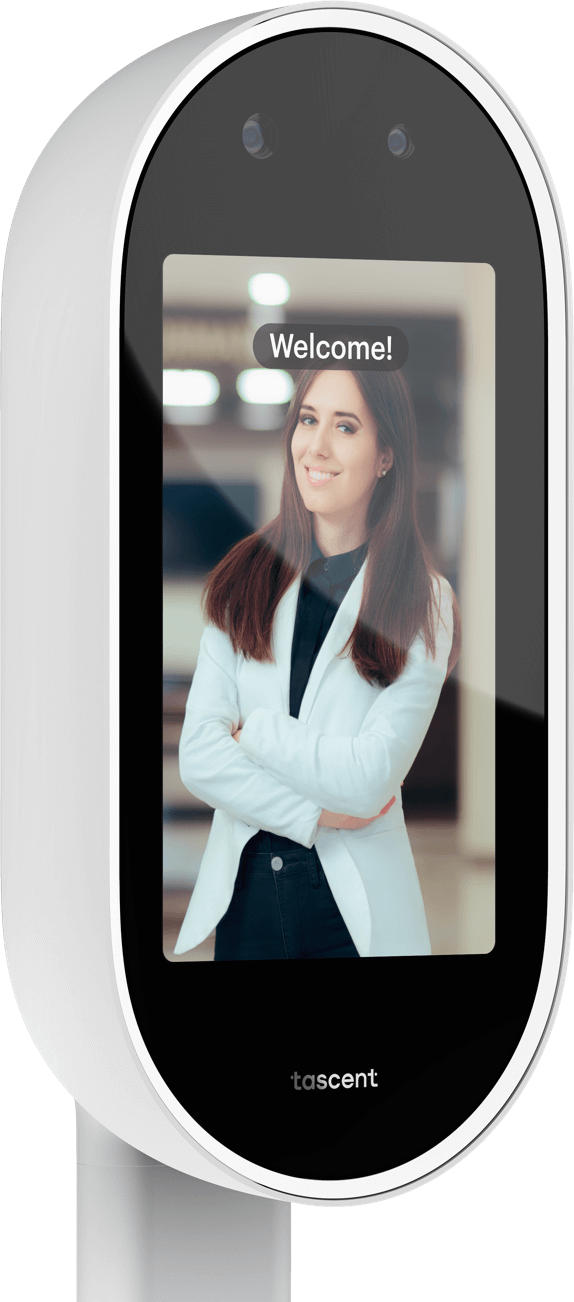

InSight Face

Enabling cooperative, high-throughput face recognition for your organization.

Watch the Video
hero-bg

Tascent InSight Face delivers a transformational combination of high biometric accuracy and superlative customer experience. Using sophisticated face acquisition workflows and best-of-breed algorithms, InSight Face enables frictionless authentication for a wide range of applications such as air travel, border control, hospitality and events, enterprise access, and beyond.

InSight Face outperformed the competition to place #1 in recent DHS studies.

Read more

Class-Leading Performance

InSight Face outperformed all competitors at the 2019 DHS Rally, with top-ranked performance in each of the 4 test categories: efficiency (speed), acquisition (capture) rate, matching rate, and customer satisfaction.

Read more
performance-bg
InSight-Face-full-front_UI-green_go__02s_

Selectable Workflows, Multiple Capture Modes

Out-of-the-box, InSight Face delivers optimized performance in single-face, multi-face (group), and single-face (ISO) scenarios.

ISO-Compliant Face Image Capture

The guided pause-and-go mode delivers ISO-compliant face images, in line with the latest EU Entry/Exit System (EES) requirements.

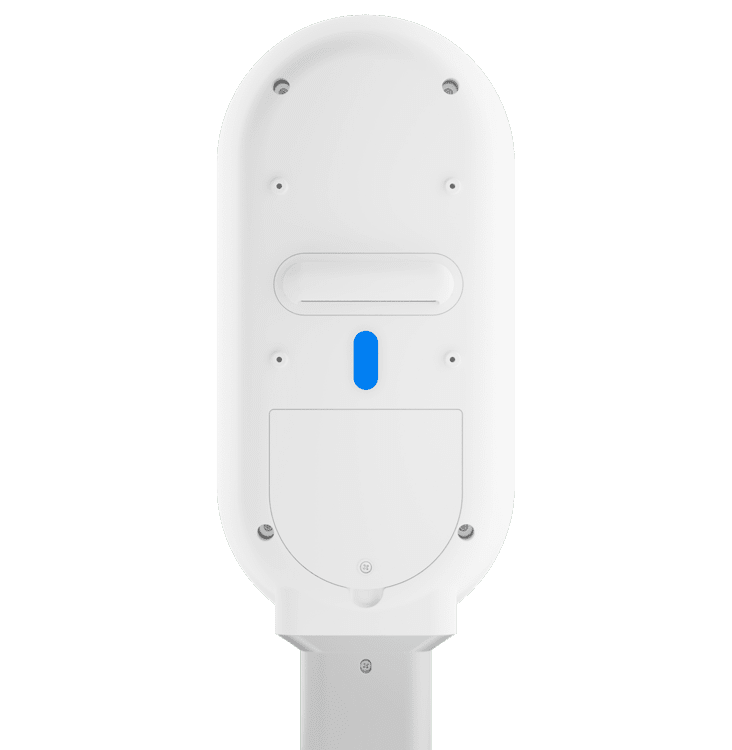

InSight-Face-full-back-view-web_S

Configurable Feedback

A large, sharp, and bright LCD screen coupled with front and rear LEDs enables intuitive and fully-configurable user interactions.

Modern Industrial Design

Extending the multi-award-winning InSight One design, InSight Face’s sleek lines attract the eye.

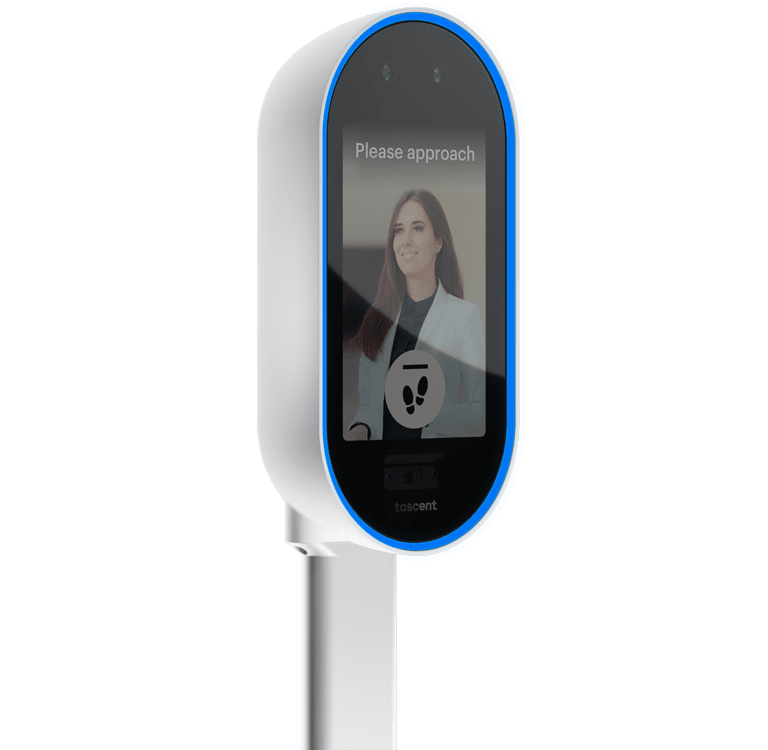

InSight-Face-front_UI-view-web_s

Hardware-Based Liveness Detection

With the optional hardware liveness detection module, your potential exposure to biometric spoofing attacks is minimized.

Adaptable Capture Volume

Flexible optical configurations and software approaches permit customization of the capture volume - the key to a truly frictionless experience.

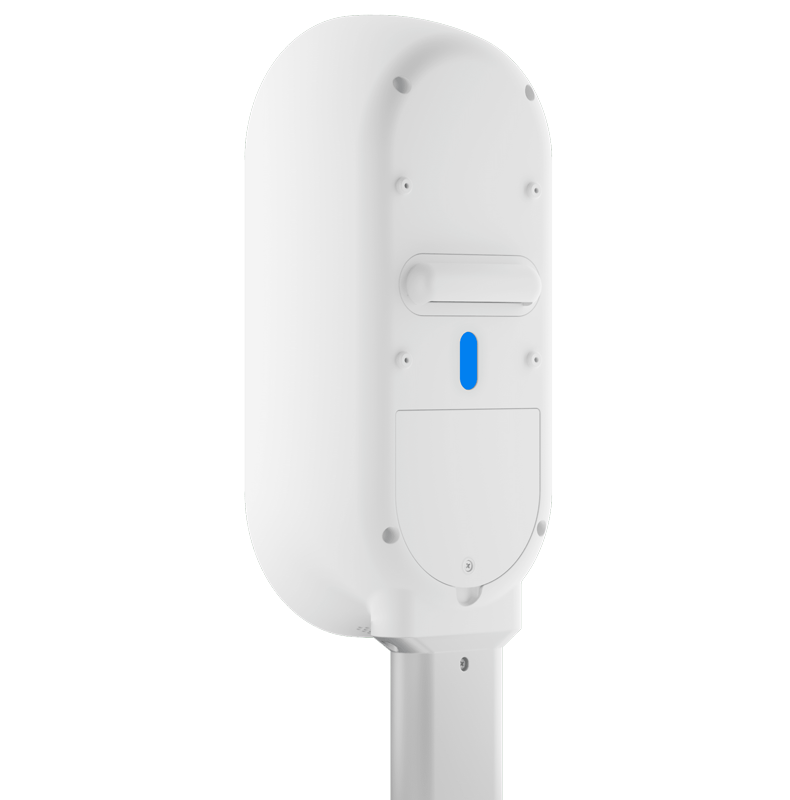

InSight-Face-back-view-web_s

Updated Enclosure Design

Includes inbuilt VESA mount to simplify deployment options, and assures device longevity.

Flexible System Interfaces

Hardware interfaces include Gigabit Ethernet, WiFi, 2 x Wiegand, HDMI, and 2 x USB 2.0.

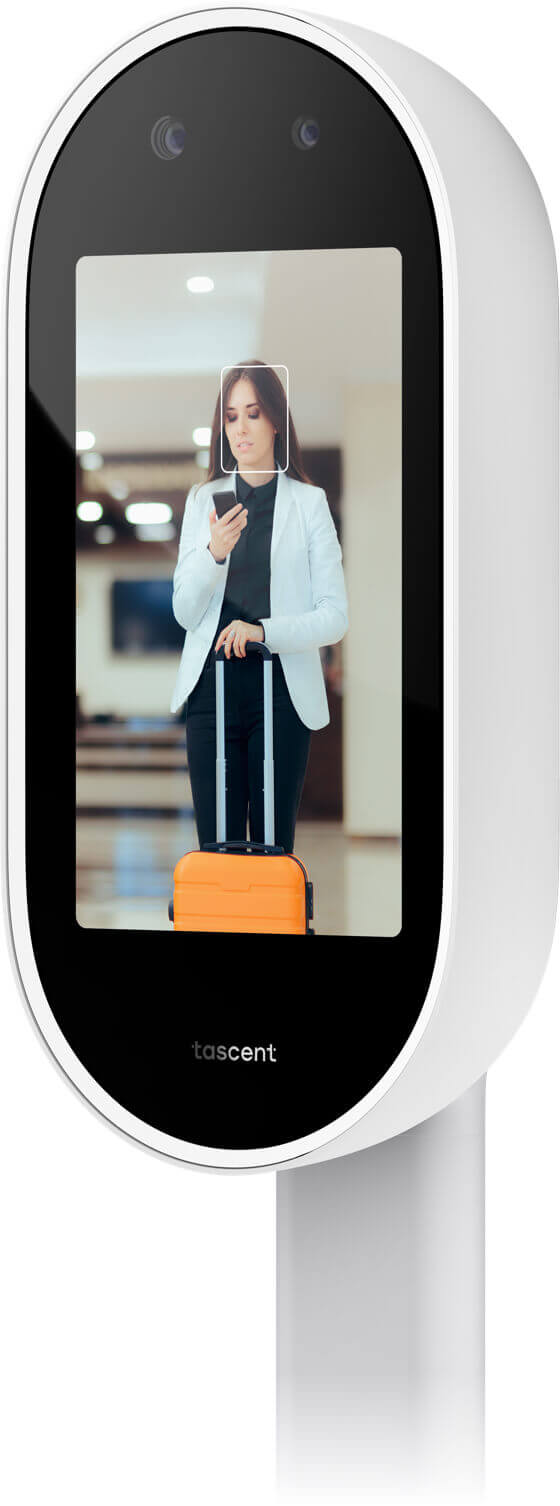

insight_face

All the flexibility you need

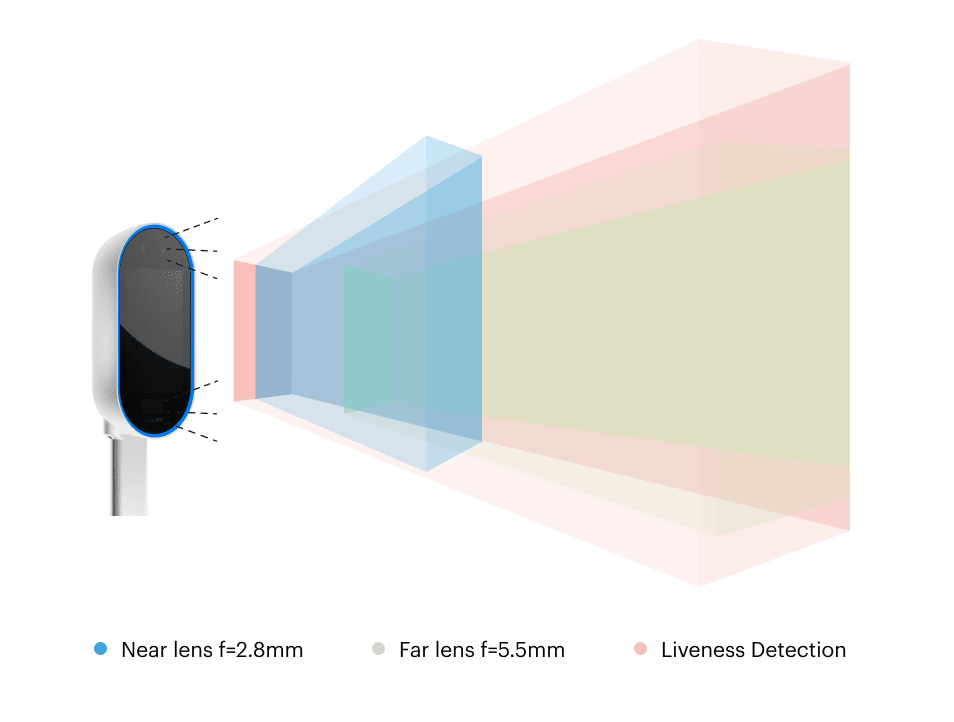

Tascent InSight Face capture volume
airport

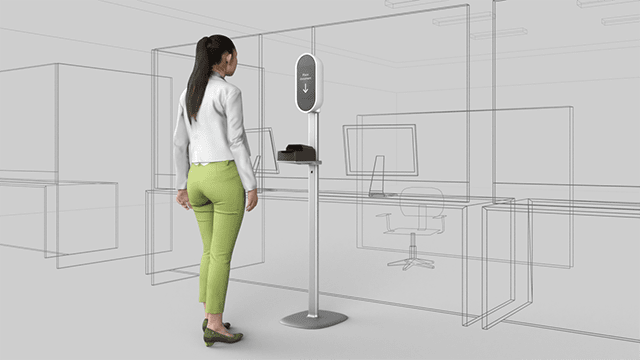

InSight_Face_usecase_01

Border Management & Immigration

Pedestrian, vehicular, air and see departure and arrival processing; Registered Traveller scheme enrolment and facilitation

InSight_Face_usecase_05

Aviation & Travel Facilitation

Check-in, bag drop; security check, ticket demonstration; premium experience, lounge access; boarding/air exit; airport employee access control, airside/ landside access, visitor management; end-to-end travel experience

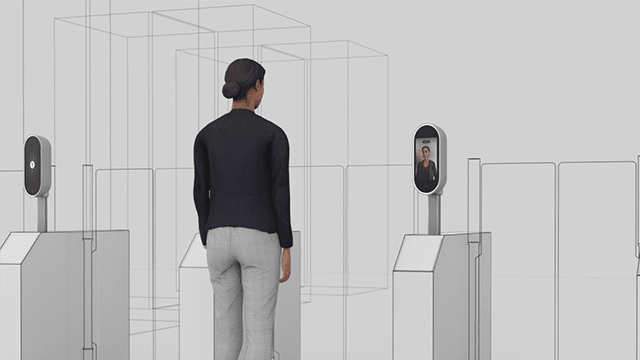

InSight_Face_usecase_04

Commercial

Personalized experiences, customer facilitation, VIP recognition, welcome, tokenless, touchless access control

Built for Flexibility

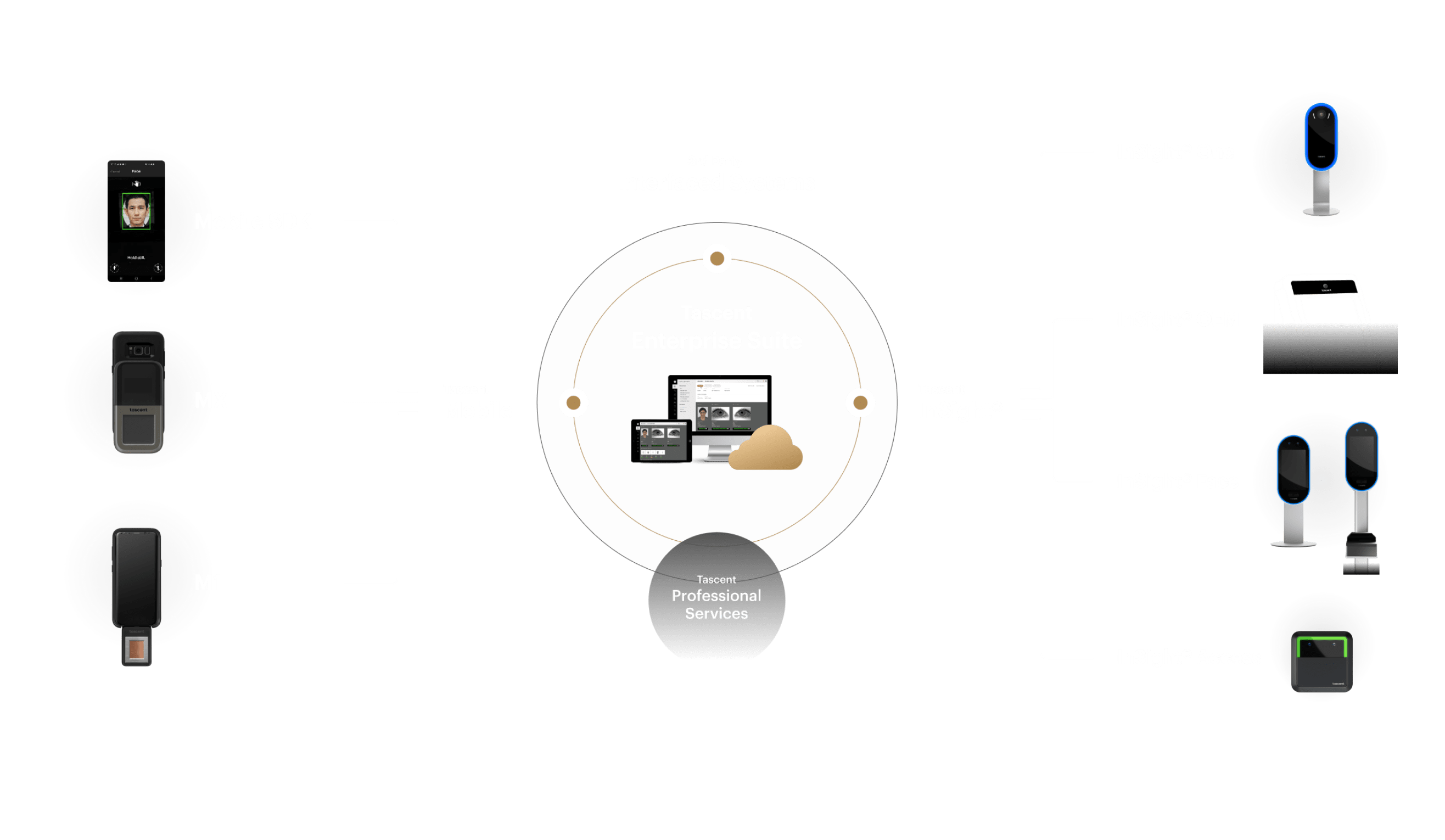

Tascent_ecosystem_dark@2x
outline

Technical specifications

Performance specifications
  • Capture Volume: Nominal 0.75 – 2.65m depth
  • Capture volume configurable by software and hardware options
  • Capture Volume Height: 1.1 – 2.1m
  • Based on the 1.67 m standard device mounting height
  • Matching time: 1 second or less when used with Tascent-ES, subject to network latency
  • Presentation Attacks Detection: HW using Intel RealSense F455
Functional specifications
  • User Interface: Integrated high resolution 10.1 “ LCD, 1280x800px (portrait)
  • Fully configurable multi-color front LED ring
  • Fully configurable multi-color rear LED indicator
  • Power: Line voltage: 100 – 240VAC
  • Frequency: 50/60 Hz
  • Power supply: 90W (24 VDC at 3.75A)
  • Weight: 3.5 kg (7.6 lbs) without mounting hardware
  • Network connection: Gigabit Ethernet, WiFi
  • 2 x USB 2.0
  • HDMI
  • 2 x Wiegand
  • Mounting options: Pole mount (to eGate, fixed position counters), VESA mount, Desktop stand
  • Dimensions: H x W x D 370mm x 180 mm x 100mm
Biometric
  • Face Capture Sensor: 13MPix for close-in and far-out
  • Lenses: Left 2.8mm, Right 5.5 mm
  • Face Tracking / Capture: Continuous – 30fps / Three modes of operation: Single-Face, Single-Person ISO, Multi-Face
  • Ambient Lighting Environment: 300 – 10,000 lux
